Transactions

Overview

Transactions are cryptographically signed instructions from accounts that update the state of the Starknet network. Starknet supports only three types of transactions, with each type going through the same lifecycle to receive its execution and finality statuses. Each transaction is issued a receipt, which includes its statuses and other information about it.

Additional information

Transaction fields and hash calculations reference in Resources
starknet_api_openrpc.json in the starknet-specs GitHub repository

Transaction types

Starknet supports the following types of transactions:

`DECLARE`	Declares new contract classes, enabling new contract instances.
`INVOKE`	Invokes an existing function in a contract.
`DEPLOY_ACCOUNT`	Deploys new account contracts in smart wallets.

The L1HandlerTransaction type is also a valid transaction type within Starknet, be it cannot be broadcast through the Starknet API like other transaction types, as it was specifically designed for internal Starknet operations (particularly, handling messages from L1 to L2).

The DEPLOY transaction type existed in Starknet for deploying account before being replaced by DEPLOY_ACCOUNT. DEPLOY only had one version (v0) and is now unsupported by Starknet.

Each transaction type is versioned, with versions increasing when the fields that comprise the transaction change, either with the addition of a new field or the removal of an existing field. The following table summarizes the current, deprecated, and unsupported versions of each transaction type:

Type Current version Deprecated versions Unsupported versions

Type	Current version	Deprecated versions	Unsupported versions
`INVOKE`	v3	v1, v0	None
`DECLARE`	v3	v2, v1	v0
`DEPLOY_ACCOUNT`	v3	v1	None

INVOKE

v1, v0

None

DECLARE

v2, v1

DEPLOY_ACCOUNT

None

Do not submit a transaction that uses an unsupported transaction type, as it cannot be included in a proof, and therefore cannot become part of a Starknet block.

Sending transaction that use deprecated versions is still supported, but support will be removed in an upcoming Starknet release.

Transaction lifecycle

The high-level steps in the Starknet transaction lifecycle are as follows:

Transaction submission: A transaction is submitted to one of the gateways, which functions as the mempool, and marks it as received.

Mempool validation: The mempool performs preliminary validation of the transaction, such as ensuring that its invoker’s balance exceeds the transaction’s max_fee value, assuring the transaction’s calldata length is within the legal limit, and more. If the transaction is invalid, it does not proceed.

Mempool validation in this context is analogous to Ethereum’s signature checking, and includes running the account’s __validate__ function for an INVOKE transaction, __validate_declare__ for a DECLARE transaction, or __validate_deploy__ for a DEPLOY_ACCOUNT transaction.

Sequencer validation: The sequencer performs preliminary validation of the transaction before executing it to ensure that the transaction is still valid. If the transaction is invalid, it does not proceed.

The sequencer repeats the same validation performed by the mempool.
Execution: The sequencer batches all transactions that passed the preliminary validation into a block, and applies them to the state sequentially. If a transaction fails during execution, it is included in the block with as reverted.
Proof generation and verification: The prover uses the Starknet operating system to computes the proof for the correct execution of all transactions in the block, and transmits it to the L1 verifier, which verifies it. At this point, the L1 state is updated to include the transaction.

Transaction statuses

The following are the possible statuses of a transaction from the moment a user sends it until the moment it passes the L1 verifier:

Type Status Description

Finality

NOT_RECEIVED

The transaction is not yet known to the sequencer.

RECEIVED

The transaction was received by the mempool. The transaction is now either executed successfully, rejected, or reverted.

REJECTED

The transaction was received by the mempool but failed the validation by the sequencer. Such transactions are not included in a block.

A rejected transaction is stored in the mempool. You cannot send another transaction with the same transaction hash.

ACCEPTED_ON_L2

The transaction was executed and included in a block.

ACCEPTED_ON_L1

The transaction was accepted on Ethereum.

Execution

REVERTED

The transaction passed validation but failed during the execution by the sequencer, and is included in a block as reverted.

Since the DEPLOY_ACCOUNT and DECLARE transactions don’t have an execution phase, they cannot be reverted.

SUCCEEDED

The transaction was successfully executed by the sequencer and is included in a block.

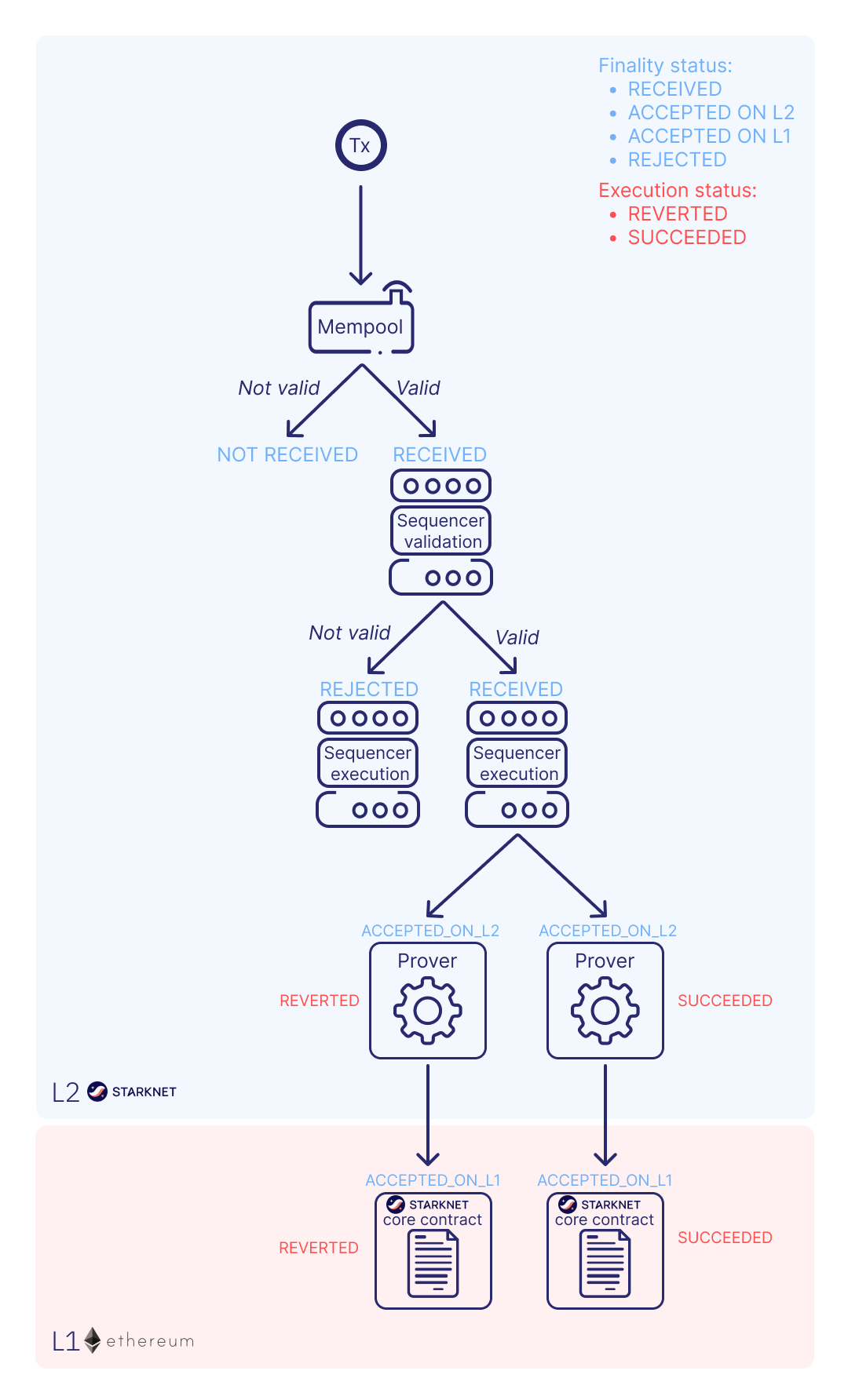

The diagram below illustrates how each transaction status fits into the overall transaction flow:

State implications of reverted transactions

When a transaction is marked as REVERTED, the following state implications occur:

Nonce increases

The nonce value for the account of the failed transaction iterates despite the failure.

Fee charge

The sequencer charges a fee for the execution of the transaction up to the point of failure, and a respective Transfer event is emitted.

Partial reversion

All changes that occurred during the validation stage are not reverted. However, all changes that occurred during the execution stage are reverted, including all messages to L1 or any events that were emitted during this stage. Events might still be emitted from the validation stage or the fee charge stage.

Fee calculation

The fee charged for REVERTED transactions is the smaller of the following two values:

The maximum fee that the user is willing to pay, either max_fee (pre-v3 transactions) or \(\text{max_amount} \cdot \text{max_price_per_unit}\) (v3 transactions).

The total consumed resources.

Consumed resources are resources used for the execution of the transaction up to the point of failure, including Cairo steps, builtins, syscalls, L1 messages, events, and state diffs during the validation and execution stages.

Transaction receipt

A transaction receipt can be obtained by using the Starknet API’s starknet_getTransactionReceipt endpoint and contains the following fields:

`transaction_hash`	The hash of the transaction.
`actual_fee`	The actual fee paid for the transaction.
`finality_status`	The finality status of the transaction.
`execution_status`	The execution status of the transaction.
`block_hash`	The hash of the block that includes the transaction
`block_number`	The sequential number of the block that includes the transaction
`messages_sent`	A list of messages sent to L1.
`events`	The events emitted.
`execution_resource`	A summary of the execution resources used by the transaction.
`type`	The type of the transaction.

The following is an example of a transaction receipt:

{
  "jsonrpc": "2.0",
  "result": {
    "actual_fee": "0x221db5dbf6db",
    "block_hash": "0x301fc0d09c5810600af7bb9610be10596ad6f4e6d28a60d397dd148f0962a88",
    "block_number": 906096,
    "events": [
      {
        "data": [
          "0x181de8b0cd32999a5cc962c5f724bc0f6a322f02957b80e1d5fef49a87588b7",
          "0x0",
          "0x9184e72a000",
          "0x0"
        ],
        "from_address": "0x49d36570d4e46f48e99674bd3fcc84644ddd6b96f7c741b1562b82f9e004dc7",
        "keys": [
          "0x99cd8bde557814842a3121e8ddfd433a539b8c9f14bf31ebf108d12e6196e9"
        ]
      },
      {
        "data": [
          "0x764da020183e28a48ee38a9474f84e7e5ff13194",
          "0x9184e72a000",
          "0x0",
          "0x181de8b0cd32999a5cc962c5f724bc0f6a322f02957b80e1d5fef49a87588b7"
        ],
        "from_address": "0x73314940630fd6dcda0d772d4c972c4e0a9946bef9dabf4ef84eda8ef542b82",
        "keys": [
          "0x194fc63c49b0f07c8e7a78476844837255213824bd6cb81e0ccfb949921aad1"
        ]
      },
      {
        "data": [
          "0x181de8b0cd32999a5cc962c5f724bc0f6a322f02957b80e1d5fef49a87588b7",
          "0x1176a1bd84444c89232ec27754698e5d2e7e1a7f1539f12027f28b23ec9f3d8",
          "0x221db5dbf6db",
          "0x0"
        ],
        "from_address": "0x49d36570d4e46f48e99674bd3fcc84644ddd6b96f7c741b1562b82f9e004dc7",
        "keys": [
          "0x99cd8bde557814842a3121e8ddfd433a539b8c9f14bf31ebf108d12e6196e9"
        ]
      }
    ],
    "execution_status": "SUCCEEDED",
    "finality_status": "ACCEPTED_ON_L2",
    "messages_sent": [
      {
        "from_address": "0x73314940630fd6dcda0d772d4c972c4e0a9946bef9dabf4ef84eda8ef542b82",
        "payload": [
          "0x0",
          "0x764da020183e28a48ee38a9474f84e7e5ff13194",
          "0x9184e72a000",
          "0x0"
        ],
        "to_address": "0xc3511006c04ef1d78af4c8e0e74ec18a6e64ff9e"
      }
    ],
    "transaction_hash": "0xdeadbeef",
    "type": "INVOKE"
  },
  "id": 1
}
